CRESTRON

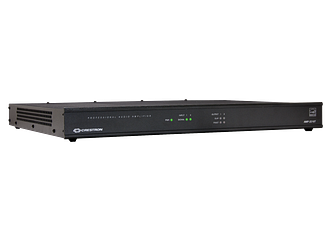

AMP-2210T
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Main Features
Single-space 1U rack mountable power amplifier
Ultra-efficient space-saving design
Low total cost of ownership
High-output power, low noise, low distortion performance
Each channel selectable for 4/8Ω, 70V, or 100V operation
Two channels each rated 210W@4Ω, 120W@8Ω, and 120W@70/100V
Transformer isolated 70 and 100 Volt outputs
Bridgeable for 420W@8Ω
Individual channel power control via jumper or remote contact
Auto power-down after 30 minutes of no signal
Instant auto power-on when an input signal is detected
No inrush current during power-up
Over current and DC offset protection per output
Thermal protection on the power supply and each channel
Front panel signal, clip, and fault indicators per channel
Professional balanced inputs
Detachable terminal block connectors
Rear panel ±10dB input level controls
Convection cooled - no noisy fans
Under 15 inches deep
Universal power supply with active power factor correction
Technical Specification
Thông số kỹ thuật | Chi Tiết |
|---|---|
Loại thiết bị | Bộ khuếch đại công suất Crestron Commercial Modular Amplifier. |
Đầu vào/ra Audio | 2 ngõ vào balanced/unbalanced line-level; 2 ngõ ra loa 4/8Ω hoặc 70/100V qua terminal block. |
Điều khiển hệ thống | Remote power control từng kênh bằng jumper hoặc contact closure; auto power-down sau 30 phút không có tín hiệu; tự bật khi có tín hiệu. |
Digital I/O hoặc cổng phụ trợ | 2 remote control inputs; chassis ground. |
Nguồn điện | 100–240 VAC, 50/60 Hz; tiêu thụ 62 W @ 8Ω, 88 W @ 4Ω, 63 W @ 70/100V khi chạy 1/8 công suất; <1 W standby. |
Thiết kế cơ khí | Rack-mount 1RU 19”; chassis kim loại màu đen, convection cooled / fanless; nặng 6.9 kg. |
Product Overview
Crestron® AMP-series Commercial Power Amplifiers provide a perfect combination of high output and efficiency for all types of professional audio applications. 100% Crestron engineered and built, these amplifiers are designed for energy efficiency to enable organizations to fulfill their green initiatives without compromising on audio performance. Advanced design features include a high-efficiency amp topology with active power factor corrected power supply, delivering a generous amount of power in a space-saving 1U rack-mountable chassis.
