CRESTRON

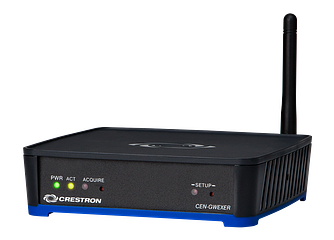

CEN-GWEXER

Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.

Main Features

Multipurpose 2-way RF wireless gateway
Simultaneously supports infiNET EX® and Crestron “ER” wireless devices [2]
Ultra dependable infiNET EX mesh network technology
“Extended Range” RF technology optimized for wireless touch screen remotes
Dynamic discovery for fast, easy setup
"Wi-Fi® friendly" channel selection for trouble-free operation
Built-in RF network diagnostics
Up to 150 feet (46 meters) infiNET EX range indoors, 250 feet (76 m) outdoors [1]
100 to 200 feet (33 to 66 meters) ER range indoors, 1000 feet outdoors
Supports infiNET EX expanders and ER roaming for extended coverage [1,3]
Extendable antenna using optional ANT-EXT [5]
Compact, stackable “IFE small” form factor
Surface or DIN rail mountable using bracket provided
Available rack mount and pole mount options [5]
High-speed Ethernet control system interface
24VDC or PoE network powered
Models available with PoE injector included
Optional 24VDC power pack sold separately

Technical Specification

Thông số kỹ thuật
Chi Tiết
Loại thiết bị
Gateway kết nối Crestron Ethernet tới EXERGENIE®/EXTER-TM devices.
Chuẩn mạng/khoảng cách cáp
Ethernet 10/100 Mbps; RF 2.4 GHz ISM channels 11–26, IEEE 802.15.4; infiNET EX tối đa 150 ft / 46 m trong nhà, ER 100–200 ft trong nhà, tối đa 1000 ft ngoài trời.
Điều khiển hệ thống
Kết nối control system qua Ethernet; hỗ trợ dynamic discovery/acquire thiết bị infiNET EX/ER.
Nguồn điện
PoE IEEE 802.3at Type 1, tương thích 802.3af, Class 1; hoặc nguồn 24VDC qua adapter PW-2407WU bán riêng; tiêu thụ 2.1 W typical.
Thiết kế cơ khí
IFE small form factor, vỏ nhựa đen/xanh; đặt bàn, stack, surface mount, DIN rail 35 mm; tùy chọn rack/pole mount; nặng 253 g chưa gồm bracket.

Product Overview

The CEN-GWEXER is a 2-way RF wireless transceiver designed for use with Crestron® infiNET EX® and “ER” (Extended Range RF) wireless devices. A single CEN-GWEXER gateway enables an entire wireless network of Crestron remotes, keypads, lighting dimmers, motorized shades, thermostats, door locks, and other devices to communicate with a Crestron control system.

Ideal Applications

Room Control

Scheduling

Documentation

Cut Sheet

Support & Training

Standard support.

Ready to intergrate

Speak with our AV engineers to verify compatibility and get a custom quote.

Download Datasheet ( PDF)
