CRESTRON

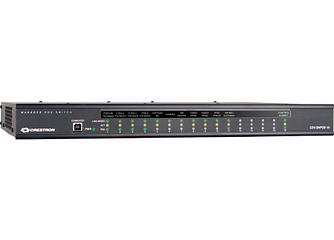

CEN-SWPOE-16
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Main Features
Rack-mount 16-port managed Ethernet switch
All ports support 1000Base-T Gigabit Ethernet
Provides full PoE (802.3at Type 1) on all ports simultaneously
Also supports PoE+ (802.3at Type 2) powered devices
Provides up to 34.2W per port, 255W total
PoE switchable per port via a control system
Auto-negotiating and auto MDI/MDIX
Layer 2 managed switching functionality
Port configuration settings for speed and duplex
LLDP (Link Layer Discovery Protocol) support
Port mirroring capability
32 Gbps switching fabric (non-blocking)
Configured via simple-to-use Web browser interface
Customizable front panel labeling
AV friendly, single-space rack-mount design
Technical Specification
Thông số kỹ thuật | Chi Tiết |
|---|---|
Loại thiết bị | Bộ chuyển mạch mạng PoE quản lý 16 cổng Crestron®. |
Kết nối mạng AV chính | 16 cổng RJ-45 10/100/1000Base-T, auto-sensing, hỗ trợ PoE/PoE+. |
Điều khiển hệ thống | Web browser interface, Layer 2 managed switching, LLDP, port mirroring, cấu hình speed/duplex, PoE switchable từng port qua Crestron control system. |
Nguồn điện | 100–240 VAC, 50/60 Hz; PoE Type 1 15.4 W trên tất cả 16 port đồng thời; PoE+ Type 2 tối đa 34.2 W/port, tổng PoE budget 255 W. |
Quản lý tập trung | Web browser interface; PoE từng port có thể điều khiển qua Crestron control system. |
Thiết kế cơ khí | Rack-mount 1U hoặc đặt bàn; chassis kim loại màu đen, fan-cooled, vented sides; kích thước 44 × 439 × 256 mm; nặng 2.9 kg. |
Product Overview
The CEN-SWPOE-16 offers control system networking made easy, providing Crestron® guaranteed performance and reliability for a complete Ethernet network of touch screens, control processors, servers, and other devices in a single-space rack mount package. All 16 ports are Gigabit capable to ensure maximum bandwidth for multimedia and critical control data. All ports are located on the rear of the unit while the front panel provides clear indication of each port's status, providing an ideal form factor for use in a typical 19" AV equipment rack. Customizable front panel labeling makes it easy to designate each port with a friendly, descriptive name.
