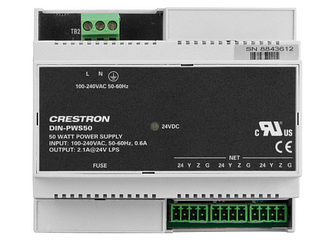

CRESTRON
DIN-PWS50
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Main Features
50 Watt Cresnet power supply module
Powers the DIN-AP2 Automation Processor and other Cresnet devices
Includes 3 Cresnet power ports
Cresnet data passes through unaffected
Dual line power input terminals for easy daisy-chaining
6M wide DIN rail mounting
Technical Specification
Thông số kỹ thuật | Chi Tiết |
|---|---|
Loại thiết bị | Bộ nguồn DIN-rail Crestron Cresnet® Power Supply. |
Digital I/O hoặc cổng phụ trợ | 3 cổng NET 4-pin 3.5 mm dạng detachable terminal block; cầu chì DC output T3.15AH. |
Nguồn điện | Input 100–240 VAC, 50/60 Hz, tiêu thụ 60 W; output tổng 50 W / 2.08 A @ 24 VDC regulated, ripple/noise <1%. |
Thiết kế cơ khí | Vỏ polycarbonate màu xám nhạt, gắn DIN rail 35 mm, rộng 6 DIN modules / 108 mm; kích thước 94.2 × 106 × 58 mm; nặng 170 g. |
Product Overview
The DIN-PWS50 is a 50 Watt Cresnet Power Supply module designed to snap onto a standard DIN rail for installation in a wall mount enclosure. DIN rail mounting enables modular installation alongside Crestron DIN Rail lighting and automation control modules and other third-party DIN rail mountable devices. All wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. Three (3) Cresnet power ports are provided.
