CRESTRON

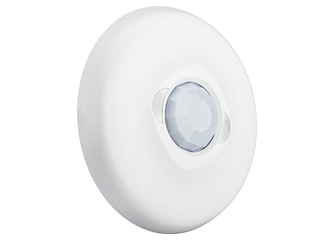

GLS-OIR-C-CN
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Main Features
Ceiling-mount occupancy sensor
Passive infrared motion detection technology
360 degree coverage pattern
2,000 sq ft coverage area
Discreet, low-profile appearance
Extremely accurate and reliable sensing
Fully digital circuitry for low cost and high reliability
Built-in ambient light recognition
External photosensor input
Control system communications via Cresnet®
Grace Occupancy feature
Technical Specification
Thông số kỹ thuật | Chi Tiết |
|---|---|
Loại thiết bị | Gateway RF Crestron® Extended Range. |
Điều khiển hệ thống | Kết nối trực tiếp Crestron control system qua Cresnet; hỗ trợ thiết lập bằng IR remote GLS-REMOTE-ODT/OIR bán riêng. |
Digital I/O hoặc cổng phụ trợ | 01 terminal block 5-pin 3.5 mm cho Cresnet slave port và external photosensor input. |
Nguồn điện | Qua Cresnet, 45 mA @ 24 VDC, Cresnet power usage 1 W. |
Quản lý tập trung | Qua Crestron control system; có thể cấu hình ID sensor bằng IR remote bán riêng. |
Thiết kế cơ khí | Vỏ nhựa trắng, gắn trần vào hộp octagon 4” hoặc lỗ cắt khoảng 3.5”; đường kính 122 mm, sâu 59 mm, phần lộ 25 mm; nặng 144 g. |
Product Overview
The GLS-OIR-C-CN is a ceiling-mounted passive infrared (PIR) occupancy sensor designed for integrated lighting and environmental control systems. Featuring 360° motion detection coverage up to 2,000 sq ft, built-in ambient light sensing, and Cresnet® connectivity, it enables automated control of lighting, HVAC, and other room functions. Its low-profile design, adjustable sensitivity, and reliable motion detection make it ideal for conference rooms, classrooms, offices, and commercial spaces.
