CRESTRON

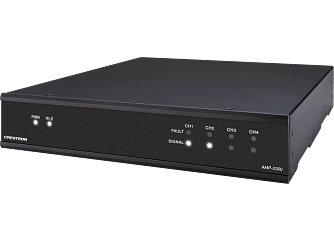

AMP-X300
Add paragraph text. Click “Edit Text” to update the font, size and more. To change and reuse text themes, go to Site Styles.
Tính năng chính
1RU surface or rack-mountable power amplifier
Half-rack width form factor, gangable with other next generation half-rack width form factor products using the RMK-AMP-X mounting kit (sold separately)
Configurable for either LoZ (4/8 Ω) or Hi-Z (70V or 100V) operation
Configurable for 4 x up to 75 W output, 2 x up to 150 W output, 1 x up to 300 W (bridged) output, and 2 x up to 75 W + 1 x up to 150 W(bridged) output
Low noise, low distortion, and high headroom
Comprehensive fault and speaker protection
Captive speaker connectors for secure and robust connectivity
Balanced and unbalanced inputs
Standby feature instantly turns on amplifier when input sensing circuitry detects an audio signal
Always On feature allows constant on connection with very low power consumption
Remote standby feature allows for instant on/off control over amplifier outputs via a simple contact closure input
Front panel power/standby, fault, and signal/clip indicators
Internal universal 100-240V power supply
Thông số kỹ thuật
Thông số kỹ thuật | Chi Tiết |
|---|---|
Loại thiết bị | Bộ khuếch đại công suất Crestron X-Series 4 kênh. |
Đầu vào/ra Audio | 4 RCA unbalanced line-level inputs; 4 balanced line-level inputs qua terminal block; 4 kênh speaker output. |
Định dạng âm thanh | Analog line-level; đáp tuyến 20 Hz – 20 kHz ±0.5 dB; S/N >103 dBA. |
Điều khiển hệ thống | Có remote standby input qua dry contact closure; nút/gạt chọn LoZ/Hi-Z, stereo/sum/bridge, power saver/always on. |
Digital I/O hoặc cổng phụ trợ | 1 remote input 2-pin, chassis ground. |
Nguồn điện | Internal universal power supply 100–240 VAC, 50/60 Hz; công suất tiêu thụ 75 W khi 4 kênh chạy 1/8 output power ở 4Ω. |
Thiết kế cơ khí | Half-rack 1RU, gắn rack/surface/đặt bàn; chassis kim loại, convection cooled / fanless; nặng 2.4 kg. |
Tổng quan sản phẩm
The Crestron® AMP-X300 is a high performance, space saving, energy efficient, professional grade amplifier solution that is totally configurable, yet simple to use. Whether you need a stereo amp that mounts on a wall or under a table, or a multichannel rack mount amp with multiple output types and power levels, the AMP-X300 is simple to specify and install in any configuration.
