EIZO

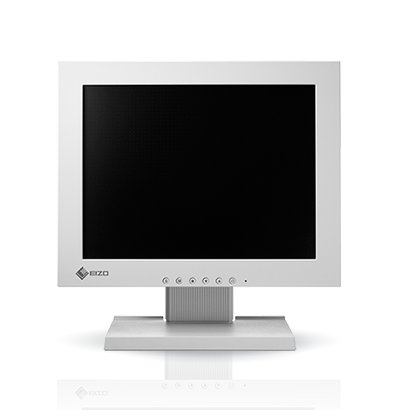

DuraVision FDSV1201T
The device features a 12.1-inch color LCD touchscreen display.
Overview
Specifications
Resources
The device features a 12.1-inch color LCD touchscreen display.
Specification | Value |
|---|---|
Different versions of the product. | FDSV1201T-GY: Comes with a base, gray color.
FDSV1201T-FGY: Does not come with a base, gray color. |
Type. | Equivalent resistance. |
Backlight. | LED. |
Dimensions. | 12.1 inches (approximately 31 cm). |
Original resolution. | 800 x 600 (aspect ratio 4:3). |
Image display size (height x width). | 246.0 x 184.5 mm. |
Pixel pitch (horizontal x vertical). | 0.308 x 0.308 mm. |
Display colors. | 16.2 million. |
Perspective (horizontal / vertical, typically). | 160 degrees / 140 degrees. |
Brightness (typical). | 360 candelas per square meter. |
Contrast ratio (typical). | 700:1 |
Response time (average). | 10 milliseconds (black-and-white). |
Contact point. | Please provide the Vietnamese text you would like me to translate. I need the text to be able to provide an accurate and professional English translation. |
Surface treatment. | Anti-glare. |
Communication protocol. | USB, RS-232C. |
Surface hardness. | 2 H. |
Compatible operating system. | Windows 11, Windows 10 (64-bit version, 32-bit version) |
Entrance gate. | DVI-D (supporting HDCP 1.4), mini 15-pin D-Sub port. |
Digital scanning frequency (horizontal / vertical). | 31 - 38 kHz / 59 - 61 Hz |
Similar scan frequency (horizontal / vertical). | 24 - 49 kHz / 55 - 76 Hz |
Synchronize formats. | Separation. |
Source peak. | USB 2.0: Type B. |
Power consumption. | Voltage: 100 - 120 V / 200 - 240 V, Frequency: 50 / 60 Hz. |
Typical power consumption. | 4W. |
Maximum power consumption. | 12 watts. |
Standby mode. | 0.5 watts or less. |
Pre-set settings. | User 1, User 2, sRGB. |
Others. | FDSV1201T: USB Type-A to USB Type-B cable (1.8m), CD-ROM (PDF user manual, touchscreen driver), installation guide.
FDSV1201T-F: USB Type-A to USB Type-B cable (1.8m), CD-ROM (PDF user manual, touchscreen driver), VESA mounting screws (M4 x 12mm) x 4, installation guide. |
Dimensions (width x height x depth) | 299 x 302.5 x 175 mm. |
Dimensions (excluding stand, width x height x depth) | 299 x 239 x 55.5 mm. |
Actual weight. | 3.8 kilograms. |
Net weight (excluding the base). | 2.2 kilograms. |
Slope. | 30 degrees upward, 0 degrees downward. |
Axle. | 70 degrees. |
The distance between the mounting holes (VESA standard). | 100 x 100 millimeters. |
Operating temperature. | 0 - 50°C (equivalent to 32 - 122°F) |
Operating humidity (relative humidity, without condensation). | 20 - 90% |
Certifications and Standards (Please contact EIZO for the most up-to-date information.) | CB, CE, UKCA, cTUVus, FCC-B, CAN ICES (B), TUV/S, VCCI-B, RCM, EAC, RoHS, WEEE, and China RoHS. |
Signal cable. | Mini 15-pin D-Sub connector (cable length: 1.8 meters). |
Warranty. | 2 years (using 24 hours per day). |
Technical drawing. | PDF. |
Two-dimensional CAD software (DXF format). | Two-dimensional CAD software (DXF format). |
