Overview
Specifications
Resources

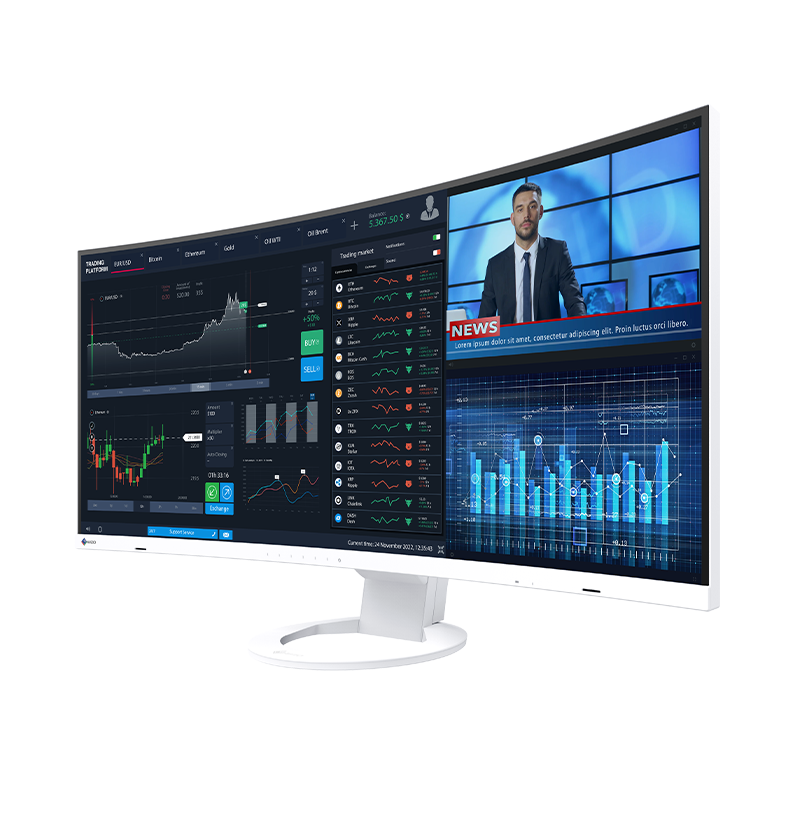

37.5-inch color LCD screen.
Here's the translation:
EIZO's first ultra-wide, curved display.
Operate multiple computers simultaneously without switching power sources.
Simple connection via a USB Type-C port.
Intelligent software to enhance your productivity.
Aesthetically pleasing and refined design.
Say goodbye to eye strain.
Commitment to quality.
Concern for the environment and your health.
Our contribution to the Sustainable Development Goals.
Specification | Value |
|---|---|
Different versions of the product. | EV3895-BK: Includes FlexStand, black color.
EV3895-WT: Includes FlexStand, white color.
EV3895-FBK: Does not include FlexStand, black color.
EV3895-FWT: Does not include FlexStand, white color.
Note: The FlexStand is detachable. |
Type. | IPS (Integrated Quality Management System). |
Backlight. | LED. |
Dimensions. | 95.3 cm (equivalent to 37.5 inches). |
Original resolution. | 3840 x 1600 (24:10 aspect ratio) |
Image display size (height x width). | 879.7 x 366.5 mm. |
The distance between pixels (horizontally and vertically). | 0.229 x 0.229 mm. |
Pixel density. | 111 pixels per inch. |
Curvature. | 2300R |
Displayed colors. | 16.77 million. |
Perspective (horizontal/vertical, typically). | 178° / 178° |
Brightness (typical). | 300 candelas per square meter. |
Contrast ratio (typical). | 1000:1 |
Response time (typically observed). | 5 milliseconds (brightness transition from gray to gray). |
Color range (typically). | sRGB: 100%, DCI-P3: 94%. |
Entrance gate. | USB Type-C, DisplayPort, HDMI x 2. |
Digital scan frequency (horizontal / vertical). | USB Type-C: 31 - 99 kHz / 29 - 31 Hz, 59 - 61 Hz
DisplayPort: 31 - 99 kHz / 29 - 31 Hz, 59 - 61 Hz
HDMI: 31 - 99 kHz / 29 - 31 Hz, 49 - 51 Hz, 59 - 61 Hz |
Source peak. | USB 5Gbps: 2 x Type-B ports, USB 5Gbps: 1 x Type-C port (supports DisplayPort mode and provides a maximum power output of 85W). |
Flow. | USB 5Gbps: Type A x 4. |
USB to LAN adapter. | RJ-45 port (1000BASE-T), Windows 11 operating system, Windows 10 (both 64-bit and 32-bit versions), macOS Sierra (10.12) or later versions. |
Speaker. | 1.0 watt + 1.0 watt. |
Output port. | Headphones (mini stereo jack). |
Power consumption. | Voltage: 100 - 240V, Frequency: 50/60 Hz. |
Typical power consumption. | 28 watts. |
Maximum power consumption. | 194 West. |
Standby mode. | 0.5 watts or less. |
Pre-set settings. | User 1, User 2, sRGB, Printing mode, Movie mode, DICOM. |
Display simultaneously. | Image viewing modes: single image view (2 images per view, 3 images per view). |
Adjust brightness automatically. | Auto EcoView. |
On-screen display language. | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese. |
Dimensions (width x height x depth) | 893.9 x 411 mm - 603.7 x 240 mm |
Dimensions (excluding the sole, width x height x depth). | 893.9 x 398.2 x 109.8 mm |
Actual weight. | 13.2 kilograms. |
Actual weight (excluding the base). | 9.5 kg. |
Adjustable height range. | 192.7 millimeters. |
Inclination. | 35 degrees upwards, 5 degrees downwards. |
Axle. | 70 degrees. |
The distance between the mounting holes (VESA standard). | 100 x 100 millimeters. |
Operating temperature. | 5 - 35°C (equivalent to 41 - 95°F) |
Operating humidity (the percentage of water vapor in the air, without causing condensation). | 20% to 80%. |
Certifications and Standards (Please contact EIZO for the most up-to-date information.) | Certifications include: TCO 9.0, EPEAT Silver with Climate+ feature, TUV ergonomic certification, TUV low blue light certification, TUV flicker-free certification, TUV/GS certification, RCM certification, CE certification, UKCA certification, CB certification, cTUVus certification, FCC-B certification, CAN ICES (B) certification, TUV/S certification, PSE certification, VCCI-B certification, EPA ENERGY STAR compliance, and compliance with RoHS, WEEE, China RoHS, CCC, and EAC standards. |
Monitor Control Utility (or: InStyle Monitor Control Interface). | Support. |
Signal cable. | USB Type-C (cable length: 2 meters), DisplayPort (cable length: 2 meters), HDMI (cable length: 2 meters). |
Others. | Included in the package are: an AC power cord (2 meters), two USB Type-A to USB Type-B cables (2 meters each), port covers, VESA mounting screws (4 pieces), and an installation guide. |
Warranty. | 5-year warranty, with no unusual bright spots within six months of the purchase date. |
Technical drawing. | PDF. |
Two-dimensional CAD software (DXF format). | Two-dimensional CAD design (in ZIP format). |
